“Will I feel confined?”
Narrow capsule geometry can restrict posture and movement during longer sessions.

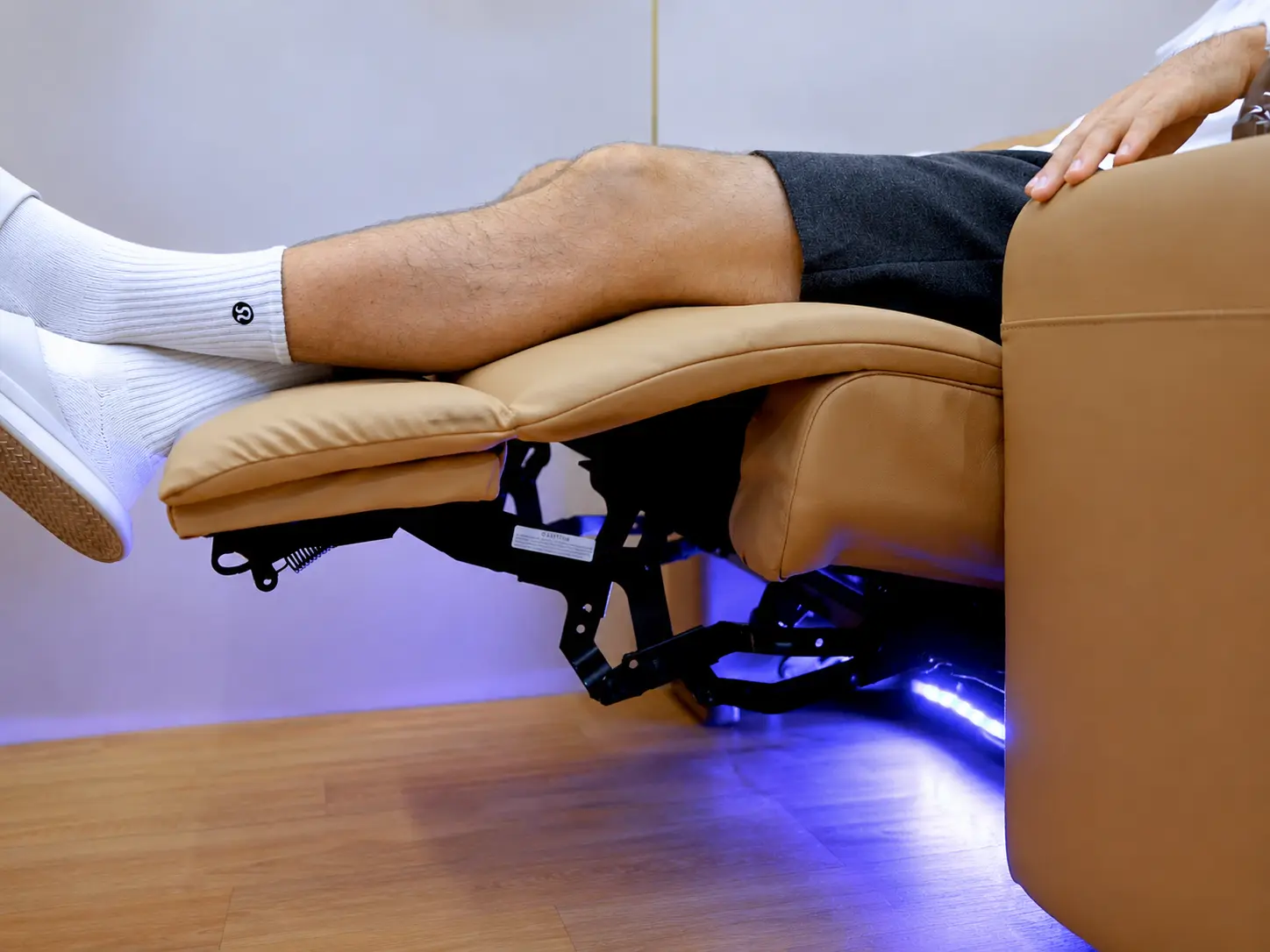

V3 response: room-style cabin + 170° recliner
| Model | V3 |
| Capacity | Single person |
| Pressurization Range | 1.3ATA: 10-30Kpa Adjustable |
| 1.5ATA: 10-50Kpa Adjustable | |
| 2.0ATA: 30-100Kpa Adjustable | |
| Oxygen Concentration | 96% |
| Oxygen flow | 5L/min |
| Top International Brands of Key Components | Compressor: USA Thomas |
| Molecular Sieve: USA Honeywell UOP | |
| Solenoid Valve: Japanese SMC | |
| Security Configurations | Internal & External manual pressure relief valve, 3 x fully automatic safety valve, emergency stop switch |
| Cabin Material | 62.5-102.5mm thick high-strength pressure- resistant SPCC Carbon Steel |
| Cabin Noise | ≤50db, the lowest 45db, 10db less than national standard |
| Intercom System | Self-developed dual-control intecom system, with intelligent and streamlined operation |

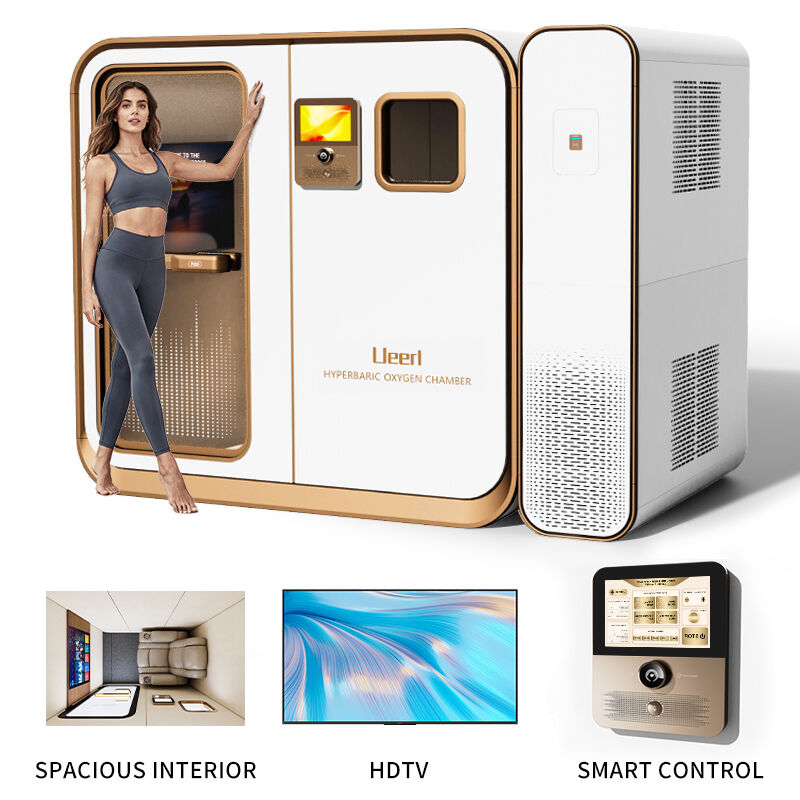

Ueerl V3 · Single-Person Premium Edition
A spacious, room-style hyperbaric oxygen chamber created around one person—so daily oxygen wellness feels private, calm and genuinely comfortable.
A Room, Not a Capsule
Step through a full-height door, settle into your own recliner and keep the freedom to sit, lean back, watch or rest. V3 turns the chamber from something you tolerate into a space you choose to return to.
Why Buyers Move Beyond Compact Chambers
V3 answers three common concerns before they become reasons not to use a chamber regularly.
Narrow capsule geometry can restrict posture and movement during longer sessions.
V3 response: room-style cabin + 170° reclinerDaily use depends on comfort, temperature, noise, entertainment and simple controls—not pressure alone.
V3 response: a complete private environmentLarge one-piece chambers may struggle with finished doors, lifts, corridors and turning space.
V3 response: modular entry and on-site assemblyExplore the Session
Select each stage to explore the parts of the experience that matter after the chamber arrives.
Performance Without the Technical Theatre
Pressurization, oxygen generation and air-circuit control work together through the V3 control architecture. The result is not a collection of components, but one coordinated operating system.
Provides the air-delivery foundation used to build, regulate and maintain the selected chamber pressure.
Molecular-sieve technology supports consistent oxygen generation throughout a planned session.
Pneumatic components coordinate airflow during pressurization, operation and controlled depressurization.
Make V3 Work for Your Space
Select your intended setting to see the practical decisions that should shape your quotation.
Private Ownership
V3 gives one user a dedicated wellness room without booking, travel or sharing the session with strangers.
Executive Wellness
For executive offices and employee wellness spaces, V3 combines individual privacy with external monitoring and clear operator control.
Commercial Wellness
For health centers, spas, beauty and recovery spaces, the room-style design creates stronger presentation and a more complete client experience.

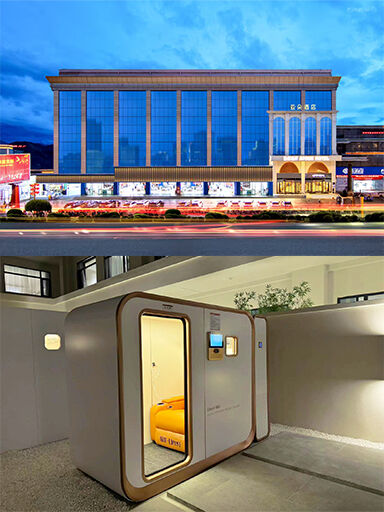

Real V3 Projects
These projects show how the V3 looks after delivery, positioning and commissioning in real professional environments.

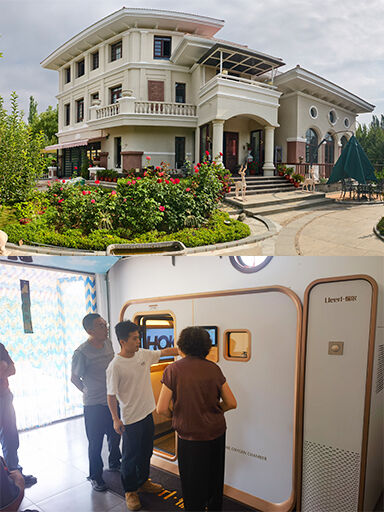

V3 positioned within an existing wellness environment, with installation completed around the finished room and daily user access.

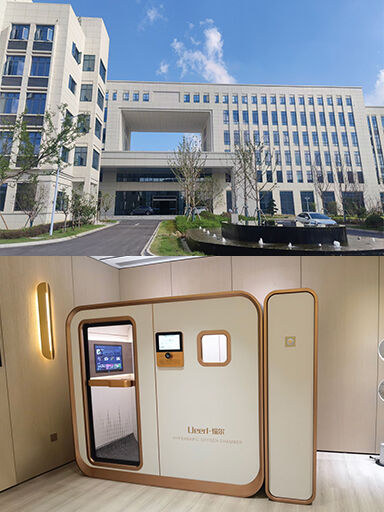

A completed room-style installation prepared for professional operation, client presentation and staff-managed sessions.
Handover Is Part of the Product
Commissioning, control guidance, routine operating procedures and a defined technical-support path help turn the delivered chamber into a service your team can run confidently.
Designed for Finished Properties
V3 modules can be planned for entry through an approximately 80 cm doorway and assembled on site. Final feasibility depends on the complete access route, not the door width alone.
Make the V3 Belong in Your Interior
Select a preview below. Final color, seat material, logo artwork and functional upgrades are confirmed before production.
Technical Planning
Use these figures for preliminary planning. Final drawings, electrical standard and installation clearance should be confirmed in your quotation.
| Pressure range | 1.3–2.0 ATA |
| Oxygen concentration | 93% ±3% |
| Oxygen output | 10 L/min |
| Internal volume | 2.87 m³ |
| Internal cabin | W193 × D89 × H167 cm |
| External chamber | W219 × D117 × H191 cm |
| Overall with host unit | W264 × D117 × H191 cm |
| Floor area | 3.10 m² |
| Chamber body weight | Approx. 1,200 kg |
| Host unit weight | Approx. 200 kg |
| Chamber material | SPCC carbon steel |
| Pressure-resistant thickness | 102.5 mm |
| Rated total power | 2,250 W |
| Voltage options | 110–220 V |
| Plug options | US / UK / EU / CN |
| Operation | Internal + external touchscreens |
| Communication | Full-duplex intercom |
| Pressure protection | Manual + automatic relief |
| Emergency control | Emergency stop |
| Displayed data | Time / pressure / O₂ / flow / temperature / humidity |
Specifications may vary by pressure configuration, voltage standard, destination market and selected customization. Confirm the final signed specification before ordering.
Before You Choose
Yes. V3 is a premium single-user room-style chamber with one electric reclining seat, designed for private sessions and professionally managed one-to-one services.
V3 supports pressure configurations within the 1.3–2.0 ATA range. The correct configuration depends on your intended use, market requirements and signed project specification.
The modular structure is designed to address finished-space access and can be planned around an approximately 80 cm doorway. A full route review is still required, including lifts, corridors, turns, stairs and floor loading.
Send the destination country, intended use, preferred pressure, room dimensions, doorway and lift sizes, site photos, voltage and any customization requirements.
Yes. Available project options include exterior finish, logo, seating, touchscreen configuration, BIBS, QR operation, UV and negative-ion functions. Availability should be confirmed for the selected configuration.
Your V3 Starts With the Space
Share your country, application, room dimensions and preferred configuration for a project-specific recommendation and quotation.
Experience superior performance with our hyperbaric chamber, featuring first-class international components and an imported pressurized oxygen system for safe, durable operation. The interior uses mother-baby grade eco-materials and multi-layer silence technology, maintaining just 45dB.
Built with 62.5-102.5mm high-strength SPCC material and a 25mm bulletproof PC door, this hyperbaric oxygen therapy system delivers 96% pure oxygen via PSA adsorption. A self-developed OS enables smart one-touch control and intercom.
Safety is ensured with 8-layer protection: lockless door, 3 automatic and manual safety valves, manual reset, over-pressure shutdown, real-time monitoring, and flame-retardant materials—making this hyperbaric chamber your reliable wellness partner.
| Cabin Size | 1.5ATA：W217*D109*H188 excluding host、W262*D109*H188 including host |
| 2.0ATA：W225*D117*H199 excluding host、W270*D117*H199 including host | |
| Floor Space | 3.16㎡ |
| Interior Space |
1.5ATA：3.05㎥ 2.0ATA：3.1㎥ |
| Cabin Weight approx. |
1.5ATA: 1023 kg 2.0ATA: 1250 kg |
| Maximum Power (Main engine) |
1.5ATA：950W 2.0ATA：1150W |
| Maximum Power (Main engine + Air conditioner) |
1.5ATA：2050W 2.0ATA：2250W |
| Work Environment | Temperature: 4-45degrees Celsius |
| Humidity: 20-90% | |
| Power supply | 100‒240V, 50/60Hz |
| Cabin Configuration | First-class Leather Electric Sofa,LCD TV, Air Conditioner |
Across diverse industries—from wellness centers and anti-aging centers to rehabilitation facilities, medical institutions, corporate offices, and luxury villas—UEERL turns unique challenges into operational success stories. Explore how we create reliable, high-performance solutions for our partners.
Internationally renowned shipping brand
Our certified engineers provide on-site installation worldwide.
The Hyperbaric Chamber combines medical-grade engineering with luxurious wellness technology, delivering you both first-class comfort and an ultra-durable experience.
Top USA PSA adsorption cycle oxygen production and pressurization system, 96% high purity, safe and durable
Powered by a top USA Thomas compressor, with low noise, 50% longer lifespan, and high efficiency & stability.
Equipped with precision-engineered Japanese SMC solenoid and safety valves, ensuring secure regulation of air intake and exhaust, guaranteed safety, and an extended service life.
